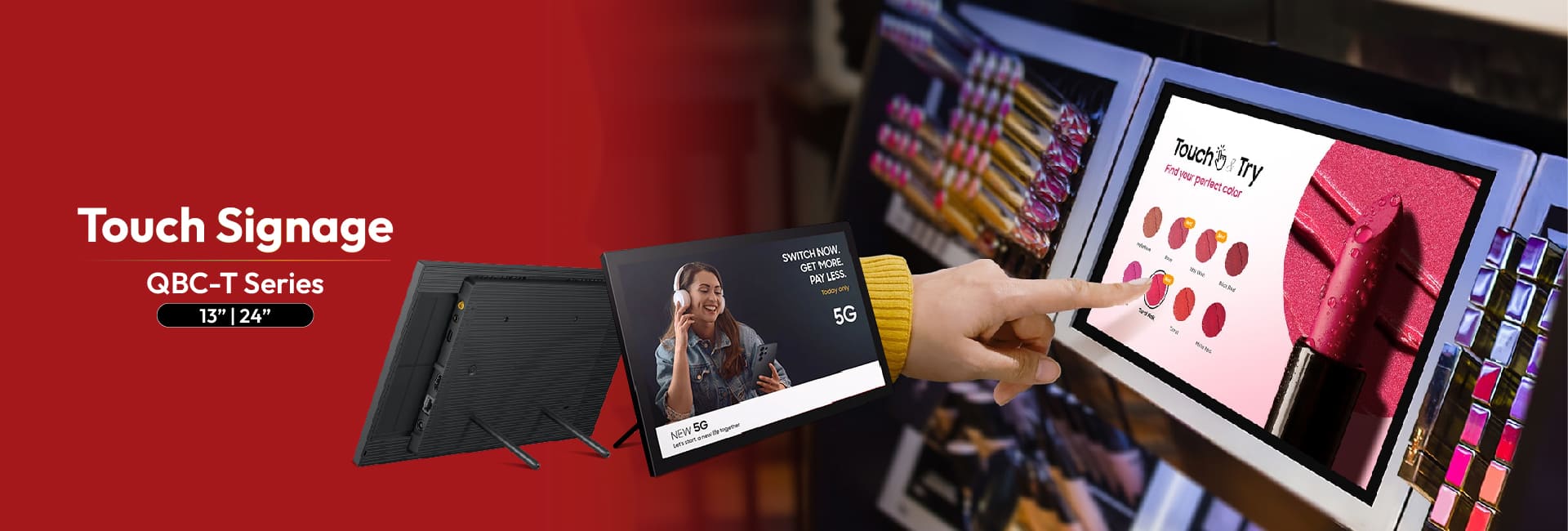

Samsung QBC-T Touch Screen
Samsung QBC-T is designed for smooth and engaging customer interactions. This Samsung QBC-T Digital Signage combines responsive 10-point multi-touch technology, Full HD clarity, and the reliable Tizen OS in a sleek all-in-one display. Ideal for retail, hospitality, corporate, and self-service applications, it delivers dependable 24/7 performance. If you are looking for this Digital Signage, MNK Digital is the best place. We are Authorized Samsung’s Dealer in Pakistan. MNK Digital provides genuine Samsung QBC-T displays with expert consultation, installation, and after-sales support across Pakistan.
QBC-T Touch Screen
LH13QBCTBGBXEN
LH24QBCTBGCXEN
- 4K UHD Multi-Touch Interactive Display
- 10-Point Multi-Touch for Smooth Collaboration
- Android OS with Built-in Content Management
Compact Display for Every Space

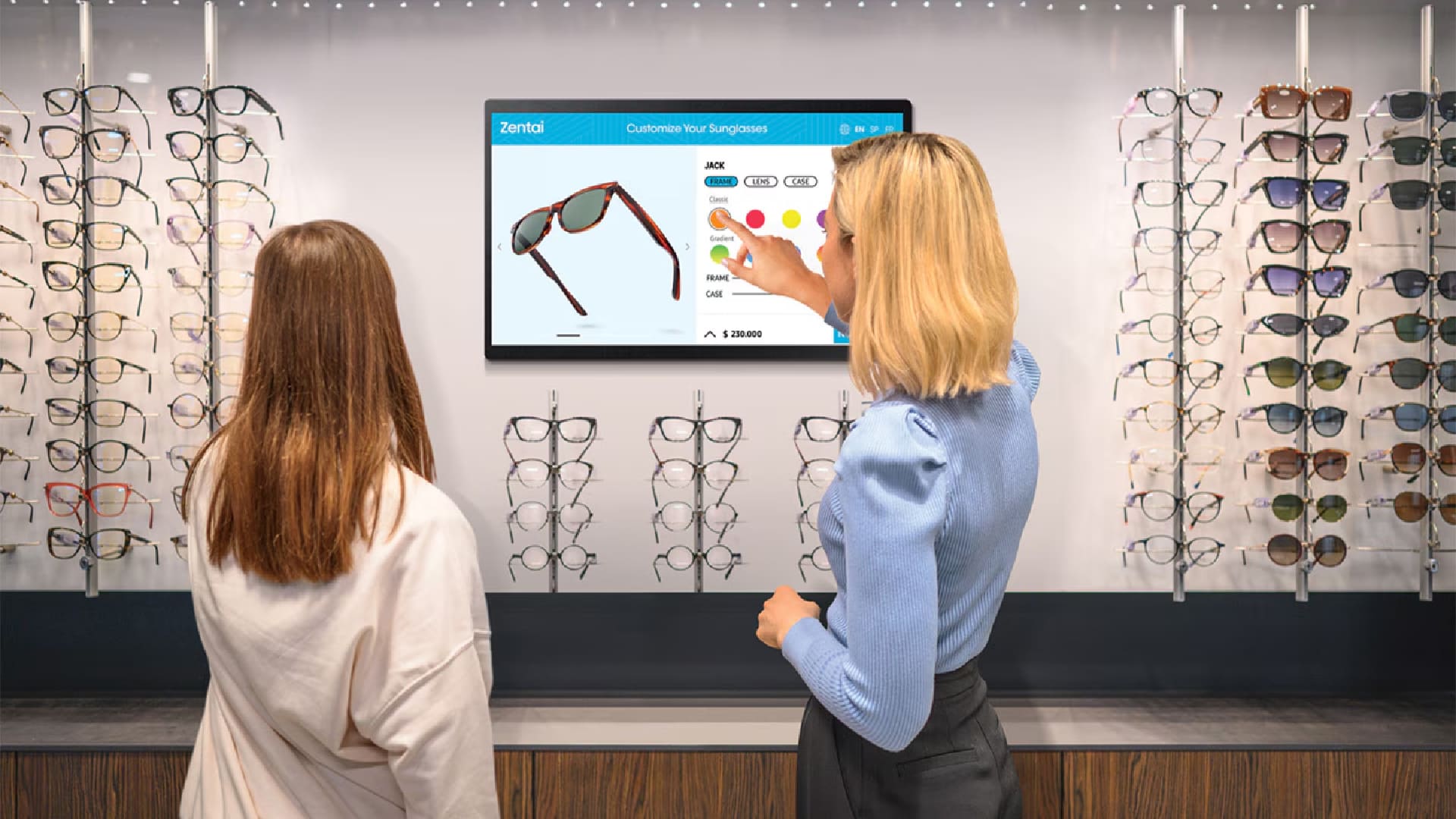

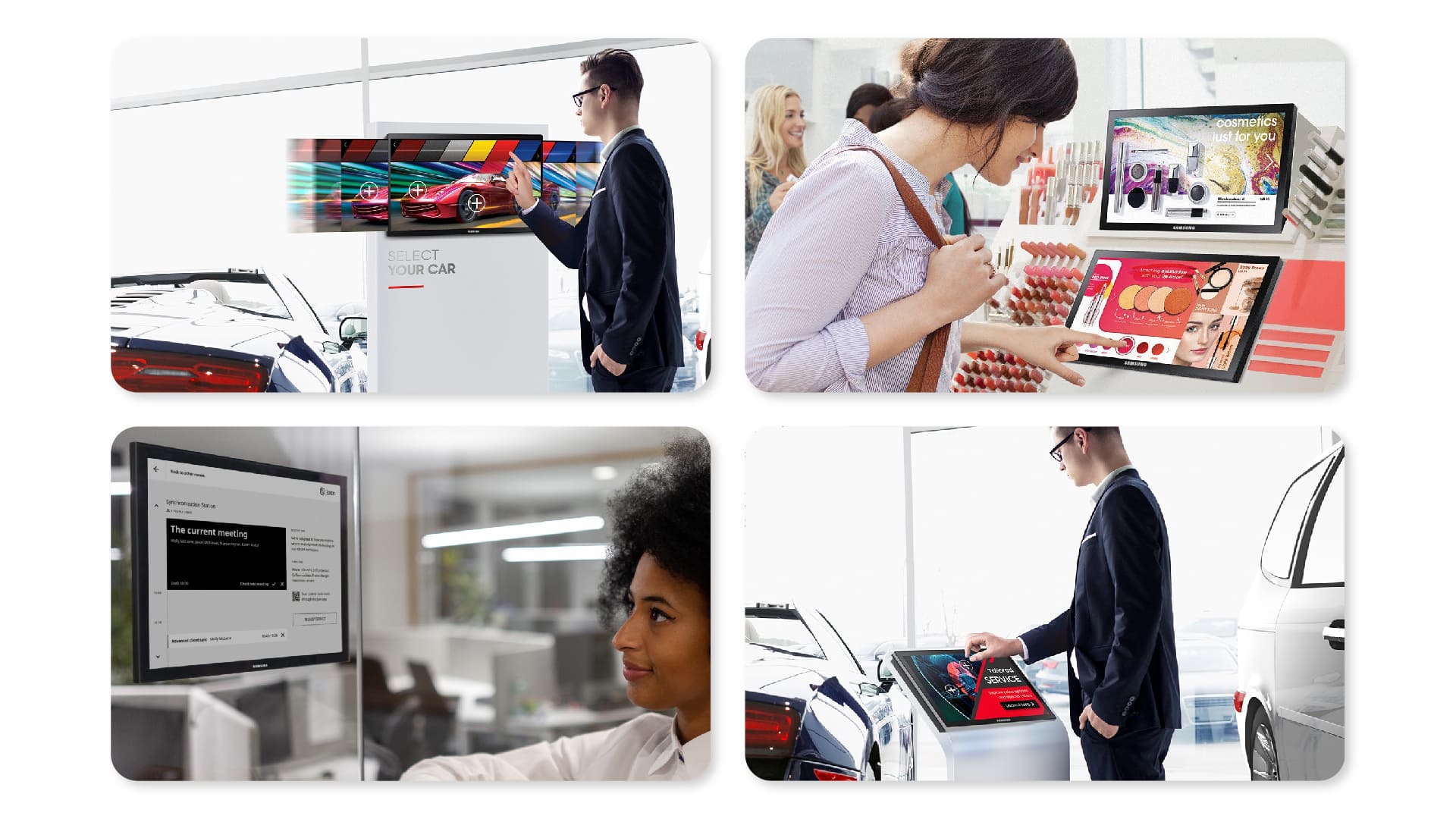

The Samsung QBC-T is designed to fit where space is limited without sacrificing functionality. Available in 13-inch and 24-inch sizes, it is ideal for retail counters, kiosks, reception desks, and business environments. MNK Digital helps businesses deploy the right display solution to maximize space while delivering a modern and interactive customer experience.
Responsive 10 Multi-Touch Points
The Samsung QBC-T features advanced 10-point capacitive multi-touch technology for smooth and accurate interaction. Multiple users can engage with the display at the same time, making it ideal for browsing information, navigating menus, or accessing business applications. Every touch responds quickly, creating a natural and user-friendly interactive experience.
Slim Design with Greater Flexibility

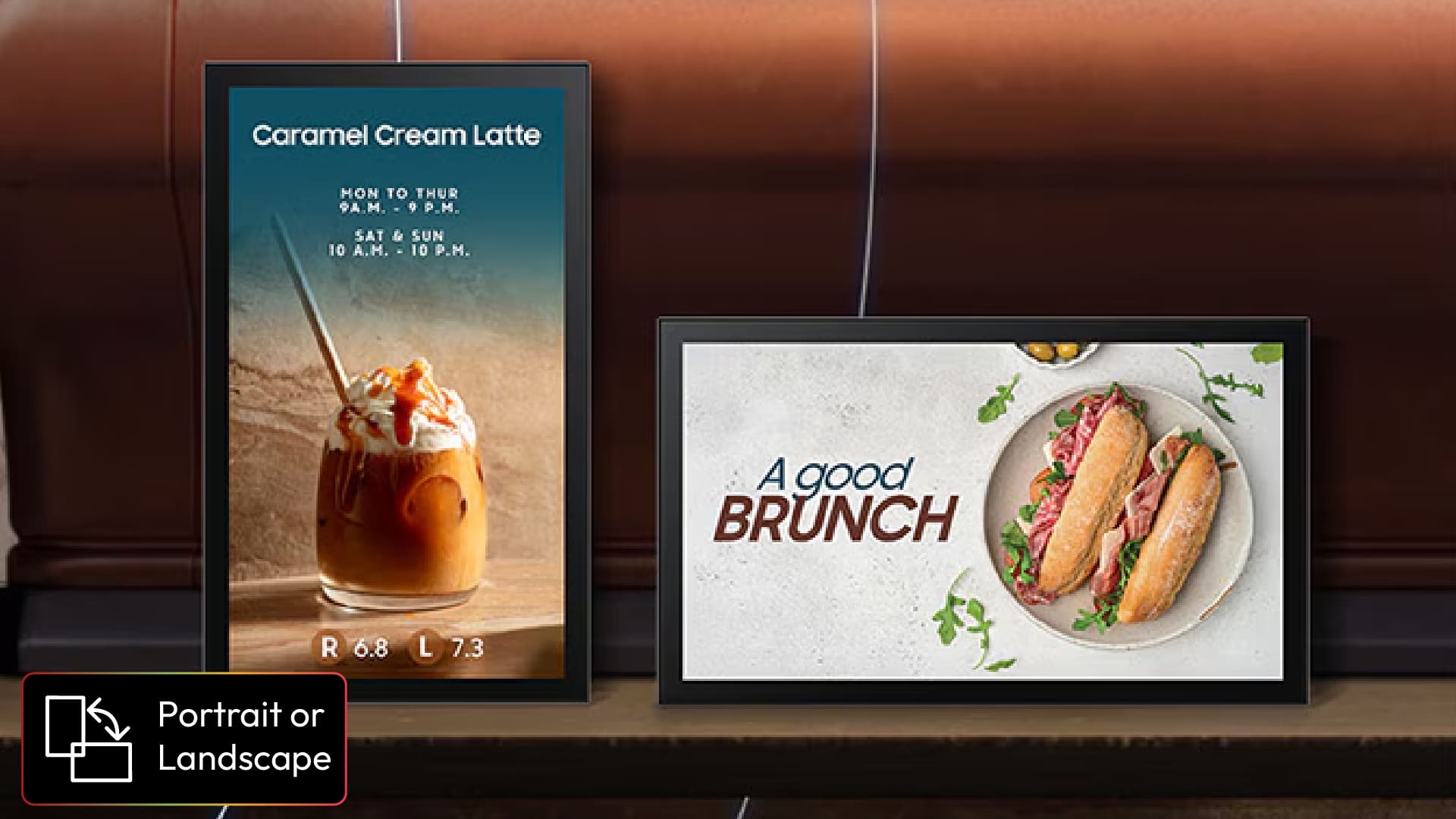

The Samsung QBC-T features a slim and lightweight design that simplifies installation in a variety of commercial environments. It can be mounted in either portrait or landscape orientation, giving businesses greater flexibility to suit their space. Its modern appearance blends seamlessly into retail stores, offices, hospitality venues, and other professional settings.
Wireless Connectivity Built In
The Samsung QBC-T comes with integrated Wi-Fi and Bluetooth, enabling convenient wireless communication without additional hardware. Businesses can share content, connect compatible devices, and manage displays more efficiently. This built-in connectivity helps streamline daily operations while providing a cleaner installation with fewer cables and greater flexibility.

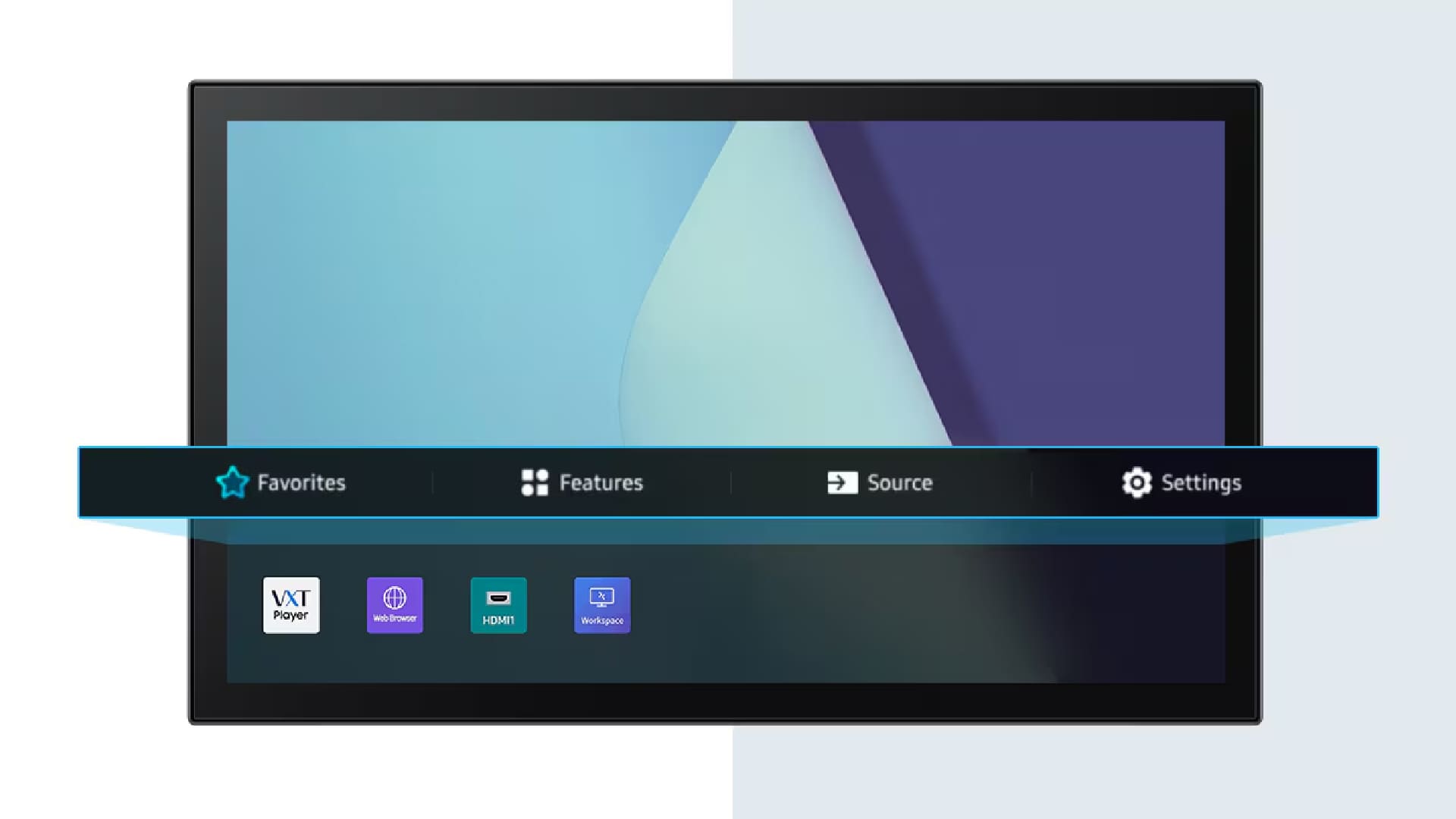

Convenient Home Screen Control
The Samsung QBC-T features a redesigned home screen that puts essential functions within easy reach. Frequently used applications, input sources, and display settings are organized for quick access, reducing the time needed for daily operation. Its intuitive interface helps users manage content and settings with greater speed and convenience.
Reliable Commercial Performance
Built for demanding commercial environments, the Samsung QBC-T delivers dependable performance throughout the business day. With IP5X dust protection, EMC Class B certification, and reliable 16/7 operation, it is designed to perform consistently in professional settings. Its durable construction helps ensure long-term reliability while minimizing maintenance and downtime.

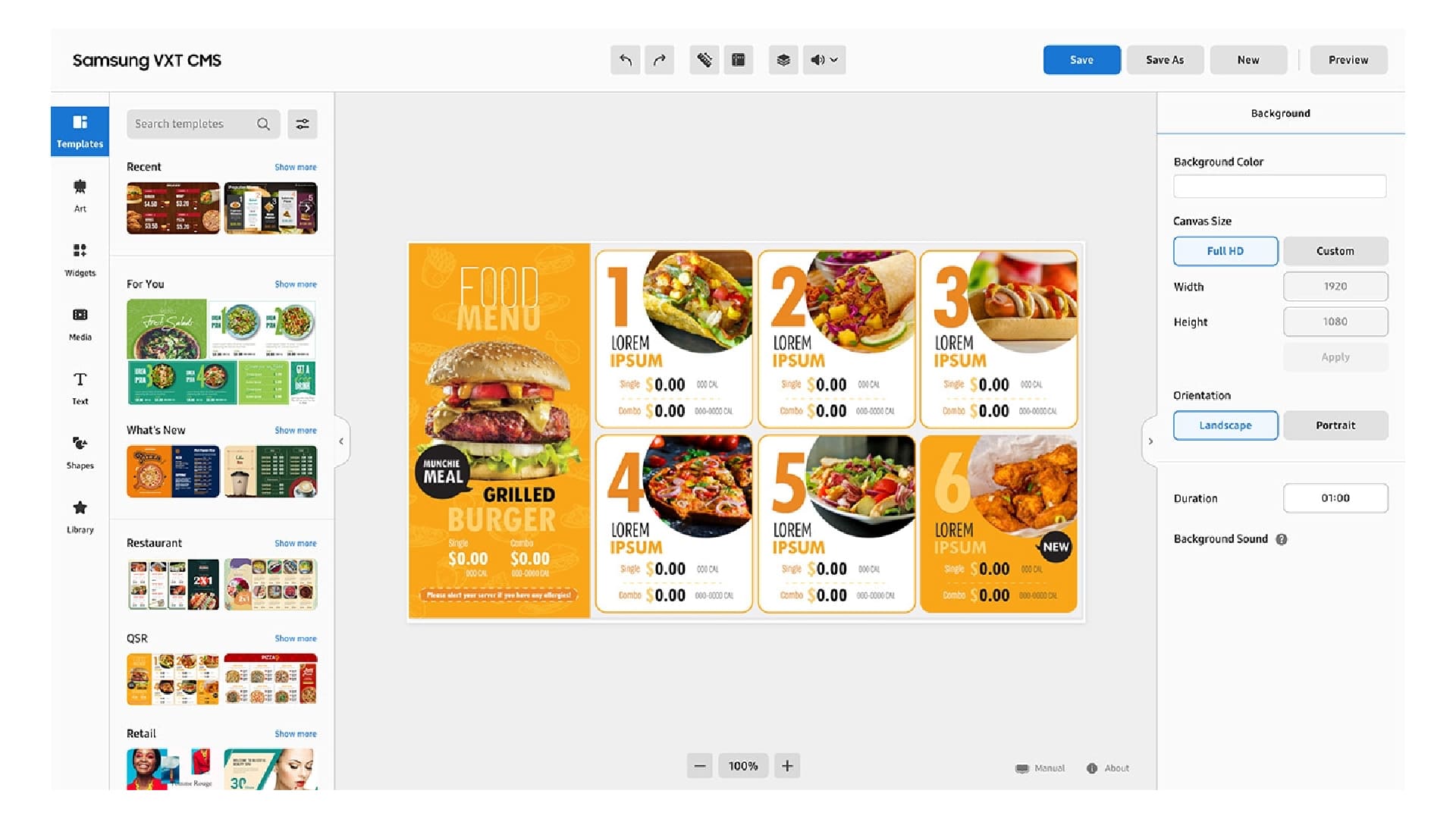

Smart Remote Display Management
The Samsung QBC-T supports Samsung VXT, allowing businesses to manage displays from a remote location with ease. Users can update content, schedule playlists, and monitor device status through a centralized platform. This streamlined management solution saves time, improves operational efficiency, and keeps digital signage running smoothly across multiple locations.
Specifications
Different Variant
Display
ADS
Panel Type
16:9
Aspect Ratio
1920 X 1080
Resolution
| Display | |
|---|---|
| Diagonal Size |
13" Model: 13" 24" Model: 24" |
| Panel Type | ADS |
| Resolution | 1920 × 1080 (FHD) |
| Pixel Pitch (HxV) |
13" Model: 0.153 × 0.153 mm 24" Model: 0.2745 × 0.2745 mm |
| Brightness (Typ.) |
13" Model: 500 nits 24" Model: 250 nits |
| Contrast Ratio |
13" Model: 600:1 24" Model: 1000:1 |
| Dynamic Contrast Ratio |
13" Model: 10,000:1 24" Model: Mega |
| Viewing Angle (H/V) |
13" Model: 170° / 170° 24" Model: 178° / 178° |
| Response Time |
13" Model: 30 ms 24" Model: 14 ms |
| Color Gamut |
13" Model: 45% 24" Model: 72% NTSC |
| Glass Haze | 25% |
| H-Scanning Frequency |
13" Model: 30–81 kHz 24" Model: 56–84.5 kHz |
| Maximum Pixel Frequency | 148.5 MHz |
| V-Scanning Frequency | 48–75 Hz |
| Operation Time Support | 16/7 |
| Connectivity | |
| HDMI In | 1 |
| HDMI Version | 1.4 |
| USB |
13" Model: USB ×2 24" Model: USB ×1 |
| IR In |
13" Model: No 24" Model: Yes |
| Audio Out | Stereo Mini Jack |
| RS232 In |
13" Model: Stereo Mini Jack 24" Model: Yes |
| RJ45 (LAN) | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption (On Mode) |
13" Model: — 24" Model: 38.5 W |
| Power Consumption (Sleep Mode) | 0.5 W |
| Dimension | |
| Set Dimension (W × H × D) |
13" Model: 322 × 193.5 × 22 mm 24" Model: 547.9 × 334.4 × 34.6 mm |
| Weight | |
| Net Weight |
13" Model: 1.1 kg 24" Model: 4.0 kg |
| Operation Conditions | |
| Temperature | 0°C – 40°C |
| Humidity | 10 – 80% RH |
| Mechanical Specification | |
| VESA Mount | 100 × 100 mm |
| Touch Technology | Capacitive Touch |
| Frame Finish | Non-Glossy |
| System | |
| Operating System | Tizen 7.0 |
| Flash Memory | 8 GB |
| Certification | |
| EMC | Class B |
| Safety | IEC 60950-1 / IEC 62368-1 |
